Wear Products

Clad CCO Wear Liners

Submerged Arc Welding Technology (SAWT) Tuffclad Chromium Carbide Overlay

Minepetrax has excellent quality CCO plate and weld wires. The microstructure of Cr7C3 carbide volume fraction is 50% or more, which makes it one of the reliable CCO Liners on the market. The CCO range also comes in Niobium enriched composition to provide additional abrasion resistance.

The clad cco plates can be countersunk, counterbored, manufactured to complex profiles, fabricate and roll pipes, wear bands, and sieve plates. Tuff Clad Pro is perfectly suitable for hard facing applications, which require impact resistance, high abrasion resistance, and the ability to withstand higher temperatures up to 750°C.

The Clad CCO Pro range includes HTCC, which is manufactured with a mix of Tungsten, Chromium Carbides, and Boron Carbides in a Nickel and Silicon matrix.

The Clad Pro Bucket loader wear plates (CCO) will outlast quenched and tempered steels by up to 12 times and white iron by up to 4 times.

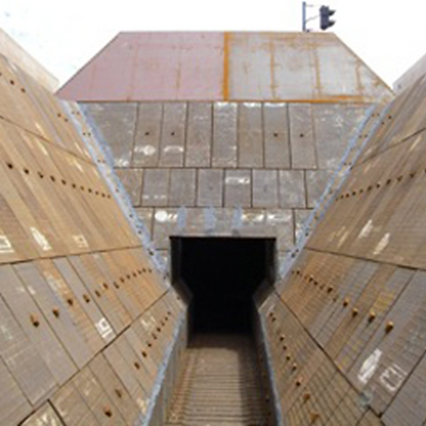

The wear plates maintain the efficiency of chutes, bins, hoppers, buckets, and other material handling equipment as it is quickly polished by abrading materials.

Crusher Liner

Bowl Mantle

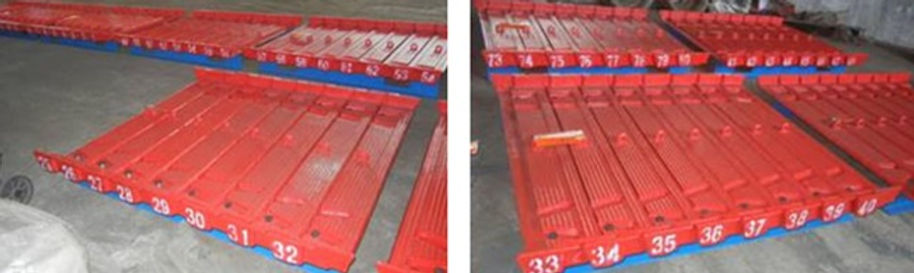

Apron

Feeder Pan

Cerammic Alumina Products

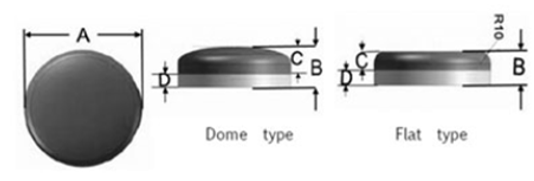

Ni Hard Billets – Liners – Buttons – Bars

Ni-Hard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of Ni-Hard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows Ni-Hard to be utilized in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.
